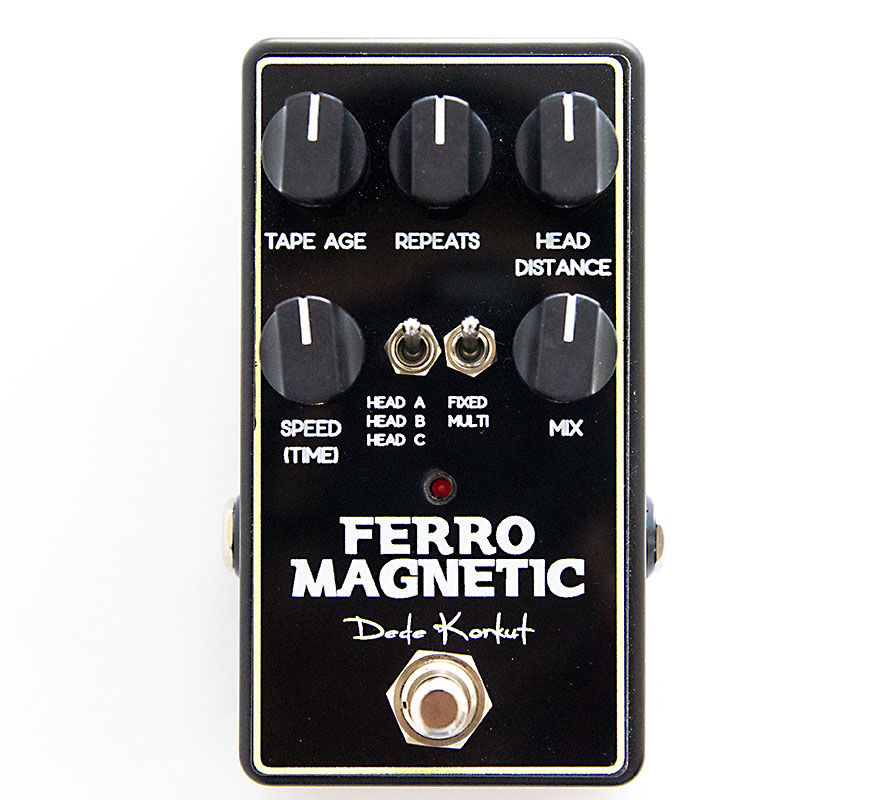

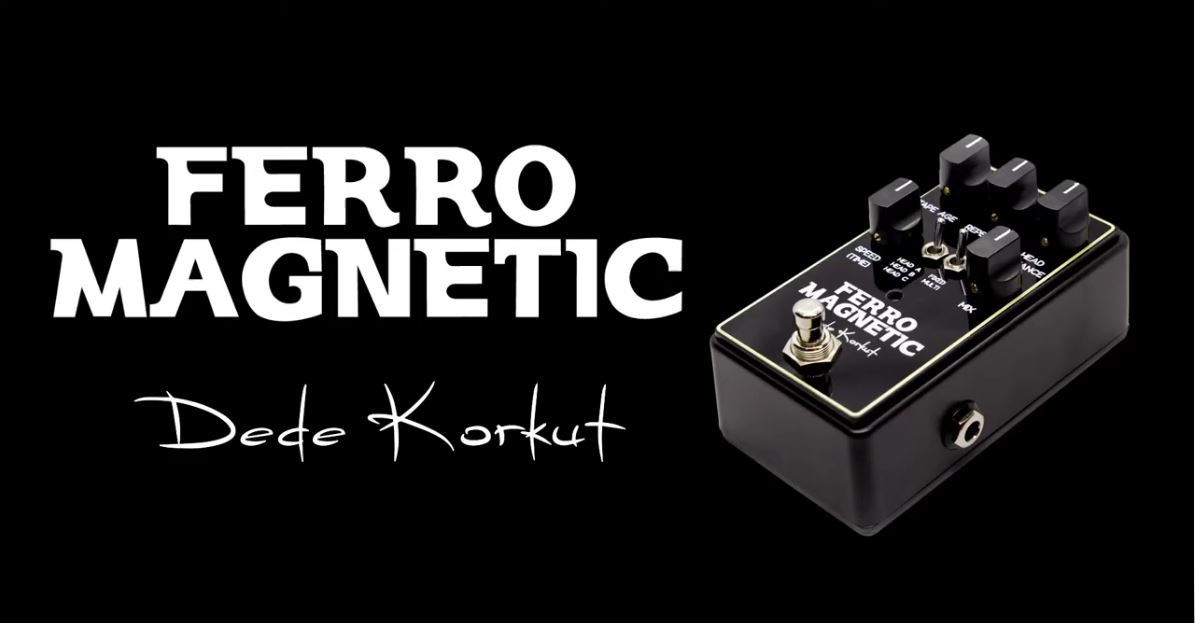

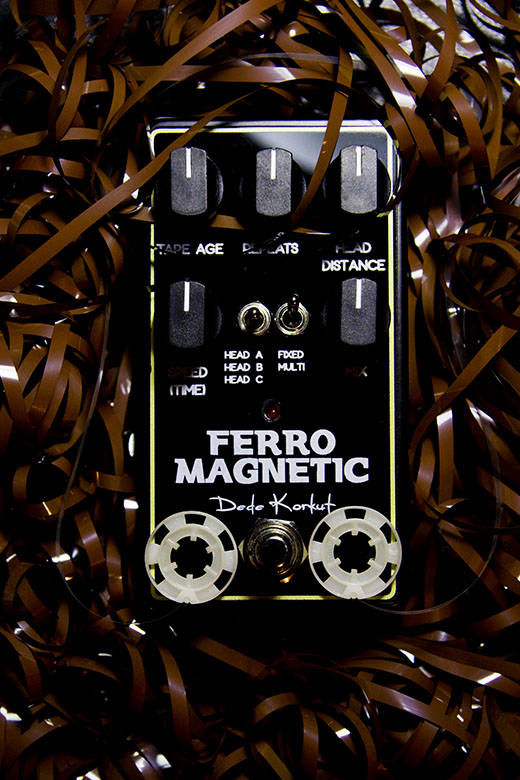

a beautifully designed multi head tape delay pedal! With intuitive
controls, tape delay enhances your playing seamlessly.

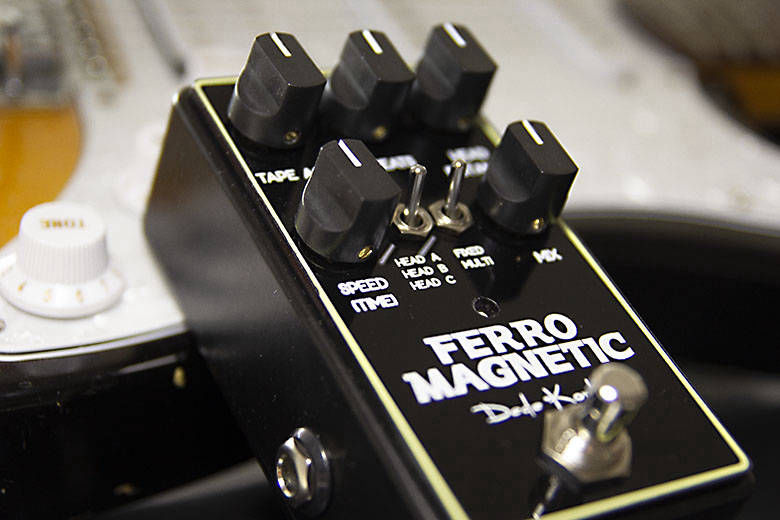

Multi Head Tape Delay

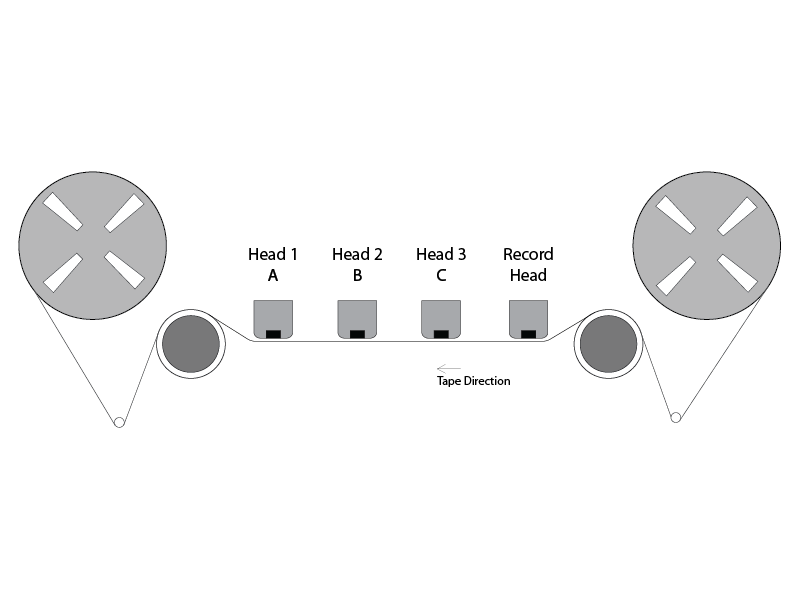

Ferromagnetic has 2 tape machines, fixed head and multi head. In fixed head tape machine you can select one of 3 fixed position heads which are adjustable via head distance control.
Playback Heads are positioned according to the record head. In Multi Mode 2 of 3 playback heads are selected.
Head Positions
Heads can be moved with Head Distance Knob
HEAD A
1/4 note | Max Delay Time: 2000 ms
HEAD B
dotted 1/8th | Max Delay Time: 1500 ms
HEAD C
1/4 triplet | Max Delay Time: 667 ms
Two tape machine modes, fixed and multi with proportional playback head distances. So you can get musical and rhythmic multi delay taps.
Tape Age and Speed of Tape Machine affects the tone of delay repeats.
Tape Age controls the frequency characteristics of the tape bandwidth according to the age of tape.
Older tapes have a warmer tone and lower bandwidth. With the adjustment of tape age, frequency response goes from clean and brand new tone to older, worn out characteristics.
Changes the distance of the playback heads to the record head by moving playback heads.
Delay time changes according to the distance between them. In Multi mode two heads move together.
You can tune your delay time without changing motor speed, and end up with uneffected bandwidth characteristics.

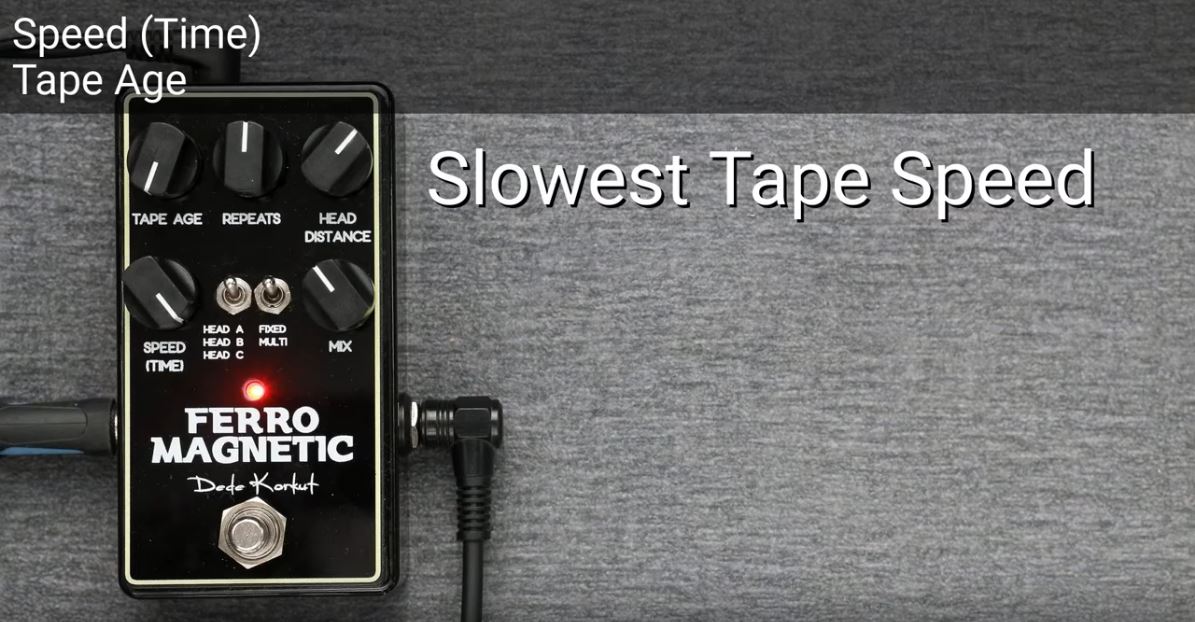

Time knob varies the tape speed while the playback head is fixed in position.
Speed (Time) knob controls the delay time by varying tape speed according to the selected Tape Head.
When the tape speed is at higher speed, tone of the repeats will be brighter and if tape speed is slowed to increase the delay time, the repeats will get darker.
HEAD A – Long Delay - 1/4 note
Max delay time: 2000 ms - Min delay time: 182 ms
HEAD B – Medium Delay - dotted 1/8th
Max delay time: 1500 ms - Min delay time: 136 ms
HEAD C – Short Delay - 1/4 triplet
Max delay time: 667 ms - Min delay time: 45 ms
In Multi Mode 2 of 3 playback heads are selected.
